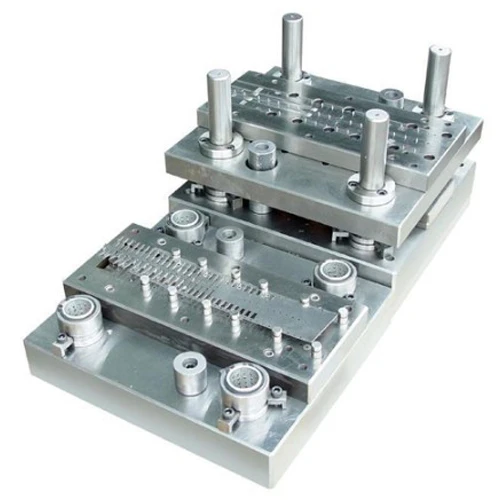

Progressive tools are designed to perform multiple operations on a single workpiece as it progresses through various stations in the die. Each station of the die performs a specific operation, such as cutting, bending, punching, or forming. The material is fed into the die in a continuous strip, and each operation is executed sequentially to produce the final part.

2. Key Components:

• Feed Mechanism: Moves the material strip into the die and positions it accurately for each operation. This can be manual or automated.
• Die Blocks: The main parts of the die that contain the various stations where different operations occur. Die blocks are typically made from high-strength tool steel to withstand the forces involved.
• Punches: The components that perform cutting or forming operations on the material. Each punch is aligned with a corresponding die cavity to create the desired shape.
• Dies: The cavities or recesses in the die blocks where the punches press the material to form or cut it.
• Blank Holders: Hold the material strip in place during the forming operations to prevent shifting or wrinkling.
• Ejectors: Mechanisms that remove the finished part from the die after the final operation, ensuring smooth extraction and preventing part jamming.

3. Operation:

1. Material Feeding:

   • Strip Loading: The material strip is loaded into the die, typically using a coil feed mechanism. The material is unrolled and fed into the die in a continuous strip or sheet.
   • Positioning: The feed mechanism positions the strip precisely so that each section of the material aligns with the appropriate station in the die.

2. Sequential Operations:

   • Initial Operations: The material progresses through the first station, where initial operations such as blanking or punching occur.
   • Intermediate Operations: As the material moves through subsequent stations, additional operations such as bending, forming, or secondary punching are performed.
   • Final Operations: The final station completes the last operation, producing the finished part.

3. Part Extraction:

   • Ejection: After the final operation, ejectors push the finished part out of the die, allowing the next section of material to enter and continue the process.

4. Types of Progressive Tools:

• Simple Progressive Die: Performs basic operations such as blanking and simple forming. Used for relatively straightforward parts.
• Complex Progressive Die: Incorporates multiple complex operations, including intricate forming, coining, and secondary processes, suitable for producing more complex parts.

5. Design Considerations:

1. Material and Thickness:

   • Material Type: The design must consider the type of material (e.g., steel, aluminum) and its properties, including thickness and hardness.
   • Material Feed: Ensure that the material feed system is compatible with the material type and thickness to prevent issues such as wrinkling or misalignment.

2. Tooling Configuration:

   • Station Layout: Plan the layout of operations to ensure efficient material flow and minimize waste. The configuration should allow for smooth progression through the die.
   • Alignment: Ensure precise alignment of punches and dies to achieve accurate part dimensions and avoid defects.

3. Production Volume:

   • Tool Life: Design the tool to withstand the production volume and frequency of use, incorporating features such as wear-resistant materials and easy maintenance.

6. Applications:

• Automotive Industry: Producing components such as brackets, connectors, and panels used in vehicles.
• Electronics: Manufacturing small, precise parts like contacts, housings, and connectors.
• Consumer Goods: Creating parts for household appliances and various consumer products.

7. Benefits:

• High Efficiency: Progressive tools allow for high-speed production with minimal downtime between operations, making them ideal for high-volume manufacturing.
• Consistency: The sequential operation of the die ensures consistent part quality and dimensional accuracy.
• Reduced Material Waste: Efficient use of material through continuous strip processing reduces waste compared to individual stamping operations.

8. Limitations:

• Initial Cost: The design and manufacturing of progressive dies can be expensive due to the complexity and precision required.
• Setup Time: Initial setup and calibration of the die can be time-consuming, particularly for complex dies.
