Jigs

Definition:

• A jig is a tool that holds, supports, or locates a workpiece during machining or assembly operations. It often includes features for guiding the cutting tool to ensure that the parts are produced to the correct dimensions and tolerances.

Functions:

1. Guide Cutting Tools: Provides a precise path for cutting tools to follow, ensuring accurate machining.
2. Hold Workpieces: Secures the workpiece in the correct position for machining or assembly.
3. Ensure Repeatability: Enables consistent results across multiple parts by maintaining the same positioning and alignment.

Types of Jigs:

1. Drill Jigs: Used to guide drills for precise hole placement.
2. Assembly Jigs: Used to ensure accurate alignment of parts during assembly.
3. Boring Jigs: Used for boring operations to achieve precise hole diameters and positions.
4. Welding Jigs: Ensures correct alignment and positioning of parts during welding.

Applications:

• Commonly used in operations like drilling, boring, and assembly.
• Found in industries such as automotive, aerospace, and electronics for producing high-precision components.

Fixtures

Definition:

• A fixture is a tool that holds a workpiece in a fixed position during machining or manufacturing. Unlike jigs, fixtures are primarily used to stabilize and support the workpiece rather than guide the cutting tool.

Functions:

1. Secure Workpieces: Holds the workpiece firmly in place, allowing for accurate machining or assembly.
2. Maintain Positioning: Ensures the workpiece is positioned correctly relative to the machining tools.
3. Reduce Setup Time: Facilitates quick and repeatable setups, improving manufacturing efficiency.

Types of Fixtures:

1. Milling Fixtures: Used to hold workpieces during milling operations.
2. Lathe Fixtures: Designed to hold workpieces on a lathe machine for turning operations.
3. Grinding Fixtures: Used to position workpieces for grinding operations.
4. Inspection Fixtures: Used to hold parts during measurement and quality control inspections.

Applications:

• Widely used in machining operations like milling, turning, grinding, and drilling.
• Essential in processes such as quality control, assembly, and automated manufacturing.

Key Differences Between Jigs and Fixtures

1. Purpose:

   • Jigs: Primarily guide tools to ensure accurate machining.
   • Fixtures: Secure and support the workpiece for machining or assembly.

2. Functionality:

   • Jigs: Include mechanisms for guiding tools and may have adjustable features.
   • Fixtures: Focus on holding the workpiece securely and may include clamping devices and alignment features.

3. Complexity:

   • Jigs: Often more complex due to the inclusion of guiding mechanisms.
   • Fixtures: Generally simpler, focusing on stability and support.

Benefits of Jigs and Fixtures

1. Increased Accuracy:

   • Both jigs and fixtures help achieve precise dimensions and tolerances, reducing errors.

2. Improved Efficiency:

   • By reducing setup time and ensuring repeatability, they enhance overall production efficiency.

3. Consistency:

   • Provide consistent results across multiple parts, which is crucial for high-volume production.

4. Enhanced Safety:

   • By securely holding and guiding workpieces, they reduce the risk of accidents and tool damage.

Examples of Use

• Drilling Jig: Used to drill multiple holes at exact locations and angles in a workpiece.

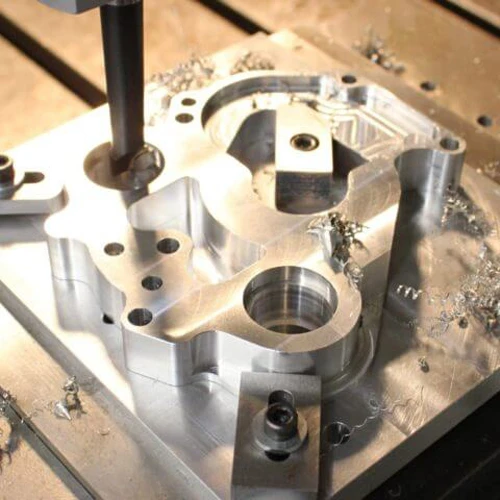

• Milling Fixture: Holds a part in place on a milling machine to ensure accurate cutting and shaping.
• Assembly Jig: Guides parts into correct alignment during assembly to ensure proper fit and function.
