Press tools are specialized devices used to perform various operations on metal sheets, such as cutting, bending, and shaping. The design of press tools involves creating a tool that efficiently and accurately performs these operations under the pressure of a mechanical or hydraulic press.

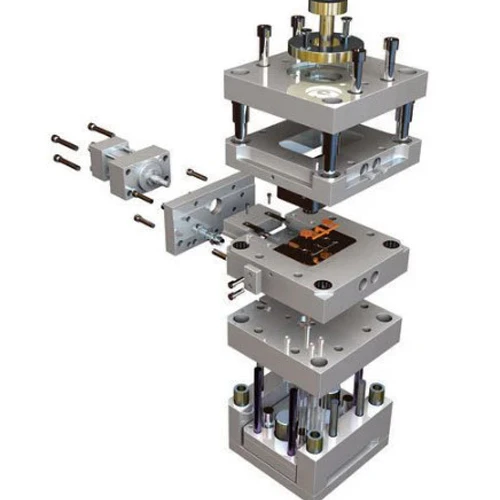

2. Key Components of Press Tools:

• Die: The lower part of the tool, which contains the cavity or shape that the material will be pressed into. Dies are designed to provide the final form to the workpiece.
• Punch: The upper part of the tool that applies pressure to the material, forcing it into the die cavity. The punch is designed to match the shape and dimensions of the final part.
• Blank Holder: Also known as a hold-down or stripper, this component holds the material in place during the forming process to prevent wrinkling or shifting.
• Guide Pins and Bushings: These components ensure precise alignment of the punch and die, maintaining accuracy throughout the stamping process.
• Ejectors: Mechanisms that help remove the finished part from the die after forming, preventing it from sticking or getting trapped.

3. Design Considerations:

1. Material Properties:

   • Material Type: The design must consider the type of material being used, such as steel, aluminum, or brass, as different materials have different forming characteristics.
   • Material Thickness: The tool design must accommodate the thickness of the material, as thicker materials require more robust tooling.

2. Tooling Requirements:

   • Tool Life: Tools should be designed to withstand repeated use and high pressures without excessive wear or failure.
   • Heat Management: High pressures and friction can generate heat, so the design may include cooling features to prevent overheating.

3. Part Geometry:

   • Complexity: The complexity of the part affects the design of the punch and die. More complex shapes may require more intricate tooling.
   • Tolerances: The design must account for the required tolerances of the final part to ensure it meets specifications.

4. Press Specifications:

   • Press Capacity: The tool must be designed to match the capacity of the press being used, including considerations for tonnage and stroke length.
   • Operation Type: Different types of presses (mechanical, hydraulic) may require different design considerations based on their operating principles.

4. Types of Press Tools:

• Progressive Dies: Used for producing parts in multiple stages. The material is fed through several stations of the die, with each station performing a different operation to progressively form the part.
• Compound Dies: Perform multiple operations in a single stroke of the press. These dies are typically used for simple shapes and high-volume production.
• Transfer Dies: Used for complex parts requiring multiple operations, where the part is moved from one station to another within the die.
• Blanking Dies: Used to cut out flat shapes from a sheet of material, often used as the first step in more complex forming processes.

5. Design Process:

1. Conceptual Design: Initial sketches and concepts are developed based on the requirements of the part, including its geometry and material properties.
2. Detailed Design: A detailed design is created using CAD (Computer-Aided Design) software. This includes precise dimensions, materials, and tolerances for all components.
3. Prototyping: Prototypes or test pieces may be created to verify the design and make necessary adjustments.
4. Manufacturing: The final tool is manufactured based on the detailed design, using precision machining and assembly techniques.
5. Testing and Adjustment: The tool is tested in a press to ensure it performs correctly and adjustments are made as needed to achieve optimal performance.

6. Applications:

• Automotive Industry: Producing components such as brackets, panels, and chassis parts.
• Electronics: Manufacturing housings, connectors, and other small parts.
• Appliances: Creating components for household appliances and machinery.

7. Benefits of Well-Designed Press Tools:

• Efficiency: Effective tool design ensures high-speed, high-volume production with minimal downtime.
• Accuracy: Properly designed tools achieve precise part dimensions and consistency.
• Cost-Effectiveness: Well-designed tools reduce material waste and maintenance costs.
