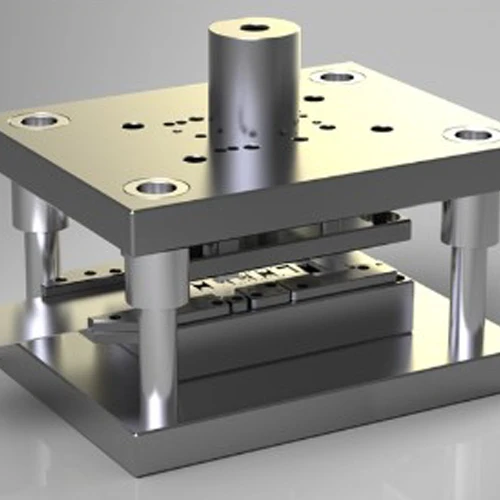

Compound tools are used to perform two or more operations—such as cutting and bending—on the material simultaneously. This design is particularly useful for producing simple to moderately complex parts efficiently in high volumes. The compound die typically consists of multiple cavities and punches that work together to achieve the desired part geometry in a single press stroke.

2. Key Components:

• Die Blocks: The primary structure of the tool, containing the cavities and cutting or forming features. These blocks are usually made from high-strength tool steel to withstand the forces involved.
• Punches: Components that press into the material to perform cutting, punching, or forming operations. Each punch aligns with a corresponding cavity in the die block.
• Die Cavities: Recesses in the die blocks where the material is shaped or cut. They correspond to the various features of the final part.
• Blank Holders: Devices that hold the material in place during operation to prevent shifting or wrinkling.
• Ejectors: Mechanisms that push the finished part out of the die after forming or cutting is complete.

3. Operation:

1. Material Loading:

   • Sheet or Strip Feeding: Material is fed into the die, either as individual sheets or a continuous strip, depending on the manufacturing setup.

2. Simultaneous Operations:

   • Cutting and Forming: In a single press stroke, the compound die performs multiple operations. For example, it may simultaneously cut out a shape from the material while also performing a bending operation.
   • Tooling Alignment: The precise alignment of punches and die cavities ensures that each operation is executed correctly, achieving the desired part geometry in one stroke.

3. Part Extraction:

   • Ejection: After the operations are completed, the finished part is ejected from the die, allowing for the next piece of material to be processed.

4. Types of Compound Tools:

• Single-Action Compound Die: Performs a combination of operations, such as cutting and bending, in a single press stroke. Suitable for simpler parts.
• Multi-Action Compound Die: Capable of more complex combinations of operations, including additional forming or stamping steps. Used for parts with more intricate features.

5. Design Considerations:

1. Material Properties:

   • Material Type: The design must consider the type of material being used (e.g., steel, aluminum) and its thickness and hardness.
   • Material Handling: Ensure the design accommodates the material's properties to prevent issues such as deformation or jamming.

2. Tool Configuration:

   • Station Layout: Arrange punches and cavities to efficiently achieve the desired part features in one stroke. The layout should minimize material waste and ensure smooth operation.
   • Alignment: Ensure precise alignment of components to achieve accurate part dimensions and avoid defects.

3. Production Volume:

   • Tool Life: Design the tool for durability, especially if high volumes of production are expected. This may include using wear-resistant materials and incorporating features for easy maintenance.

6. Applications:

• Automotive Industry: Producing simple to moderately complex components such as brackets, clips, and housings.
• Electronics: Manufacturing parts like connectors and housings that require simultaneous cutting and forming.
• Consumer Goods: Creating components for household appliances and various consumer products.

7. Benefits:

• Efficiency: Compound tools enable multiple operations to be performed in a single press stroke, which can improve production speed and efficiency.
• Consistency: Achieve consistent part quality and dimensional accuracy due to the simultaneous execution of operations.
• Reduced Handling: Minimizes the need for material handling between operations, reducing the risk of misalignment and waste.

8. Limitations:

• Complexity: The design and manufacturing of compound dies can be complex, particularly for parts with multiple intricate features.
• Initial Cost: High initial setup costs due to the complexity of the tool and precision required.
