1. Setup:

   • Workpiece: The material to be cut is mounted on the machine's worktable. The workpiece must be conductive, such as metals like steel, aluminum, and copper.
   • Wire Electrode: A thin wire, usually made of brass or copper, is threaded through the workpiece. The wire is continuously fed from a spool and is kept taut.

2. Electrical Discharge:

   • Discharge Process: A series of rapid electrical discharges (sparks) are generated between the wire and the workpiece. These sparks erode the material in the desired shape.
   • Dielectric Fluid: The process occurs in a bath of dielectric fluid (typically deionized water) that helps to cool the wire and workpiece and flush away debris.

3. CNC Control:

   • Programming: The machine is controlled by a computer numerical control (CNC) system. The desired cutting path is programmed into the machine, and the CNC system precisely controls the movement of the wire and the workpiece.
   • Movement: The CNC system directs the wire and workpiece according to the programmed specifications, allowing for complex geometries and high precision.

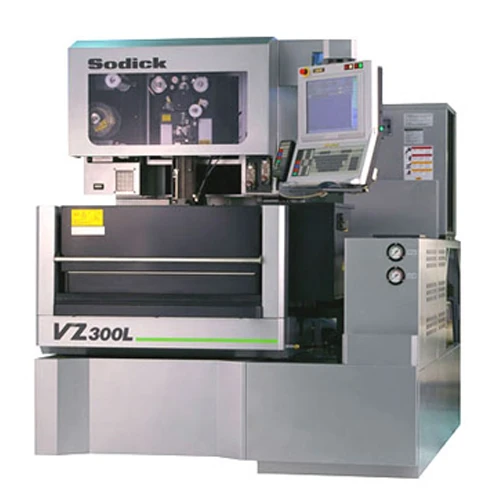

3. Key Features of Sodick CNC Wire EDM Machines:

Sodick is renowned for its advanced technology and innovation in Wire EDM machines. Key features typically include:

• High Precision and Accuracy: Sodick machines are known for their exceptional precision, with fine tolerances and surface finishes.
• Advanced Control Systems: Sodick machines feature sophisticated CNC controls that enable complex geometries and high-speed machining.
• Stable Performance: Advanced technologies, such as linear motor drives and high-speed circuits, contribute to stable and reliable performance.
• User-Friendly Interface: Sodick machines often come with intuitive interfaces for ease of programming and operation.
• Efficiency: Innovations in technology, such as advanced dielectric fluid systems and wire feeding mechanisms, improve machining efficiency and reduce downtime.

4. Applications:

• Tool and Die Making: Ideal for creating molds, dies, and tools with intricate details and high precision.
• Aerospace and Automotive Industries: Used for producing complex components with tight tolerances.
• Medical Device Manufacturing: Suitable for making precise parts used in medical devices and equipment.
• Prototyping: Useful for producing prototypes with complex shapes and fine details.

5. Benefits:

• High Precision: Capable of achieving very fine tolerances and intricate details.
• Complex Shapes: Can cut through materials to create complex and detailed geometries that are challenging for other machining methods.
• Minimal Material Waste: The wire is very thin, so there is minimal material loss compared to other cutting methods.
• No Mechanical Stress: The process does not exert mechanical stress on the workpiece, reducing the risk of deformation.

6. Limitations:

• Material Limitations: Only suitable for conductive materials.
• Slower Cutting Speed: Compared to some other machining methods, Wire EDM can be slower, especially for thicker materials.
• Cost: High initial investment and operational costs can be a consideration.
