CNC milling refers to the process of using computer numerical control (CNC) machines to create precise parts and components from various materials such as metal, plastic, wood, and composites. Here’s a detailed description of CNC milling:

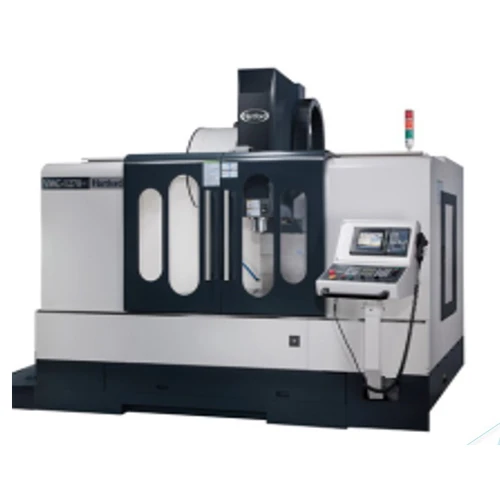

1. Machine Setup: CNC milling machines are equipped with rotating cutting tools that can move along multiple axes (typically X, Y, and Z). The machine is programmed with specific instructions to dictate the movements and actions of the cutting tool.

2. Material Fixturing: The material to be machined is securely fixed to the machine bed or worktable using clamps, vises, or other holding devices. This ensures stability during the milling process.

3. Tool Selection: Depending on the material and design requirements, different types of cutting tools (end mills, drills, etc.) are selected. These tools have varying shapes, sizes, and cutting capabilities suited for different operations.

4. Programming: CNC milling machines are controlled through specialized software that converts CAD (Computer-Aided Design) models into machine-readable code (G-code). This code specifies the tool paths, cutting speeds, depths, and other parameters necessary for machining.

5. Milling Operations: The milling process involves the rotation of the cutting tool against the workpiece, removing material in precise increments. Typical operations include:

   • Facing: Creating a flat surface on the workpiece.
   • Contouring: Cutting along the outline of the part.
   • Pocketing: Removing material from within a defined area.
   • Drilling: Creating holes of various sizes and depths.
   • Profiling: Cutting along the edges of the part to achieve a specific shape.

6. Quality Control: Throughout the milling process, operators may use measuring tools such as calipers, micrometers, or coordinate measuring machines (CMMs) to verify dimensions and ensure accuracy.

7. Advantages: CNC milling offers several advantages over conventional machining techniques:

   • Precision: High accuracy and repeatability.
   • Complexity: Ability to produce intricate geometries and shapes.
   • Efficiency: Faster production times and reduced manual labor.
   • Automation: Minimal operator intervention once the program is set up.

8. Applications: CNC milling is widely used across industries such as aerospace, automotive, medical, and consumer electronics for manufacturing components ranging from simple brackets to complex engine parts and molds.

9. Post-Machining: After milling, additional processes such as deburring (removing sharp edges), surface finishing (smoothing or polishing), and assembly may be required depending on the final product specifications.

In summary, CNC milling is a versatile manufacturing process that combines advanced technology with precise machining techniques to produce high-quality parts with tight tolerances and complex geometries.
