CNC Grinding?

CNC Grinding involves the use of a CNC machine equipped with a grinding wheel to achieve precise surface finishes and tight tolerances on various workpieces. The process is automated and controlled by computer programs, which allow for complex and repeatable operations.

Key Components of CNC Grinding:

1. Grinding Wheel: The cutting tool in the process, which can be made from abrasive materials like aluminum oxide, silicon carbide, or diamond. The wheel’s specifications (size, shape, and grit) are chosen based on the material being ground and the desired finish.

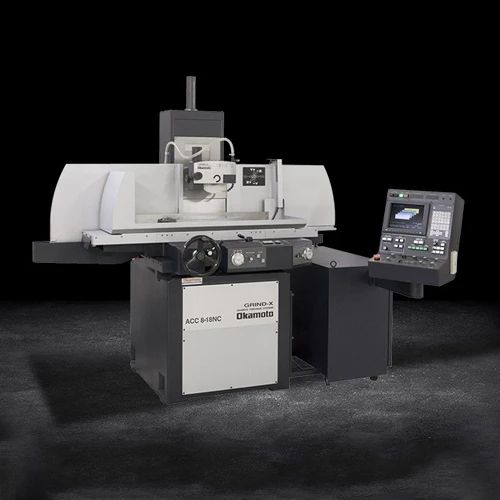

2. CNC Machine Tool: The machine that holds the grinding wheel and workpiece. It is equipped with computer controls to precisely manage the movements and parameters of the grinding process.

3. Workpiece: The material being ground, which can range from metals and alloys to ceramics and glass. The workpiece is securely clamped and positioned for accurate grinding.

Process Overview:

1. Setup: The grinding wheel is selected and mounted onto the CNC machine. The workpiece is fixtured or clamped into place on the machine’s table.

2. Programming: A computer program (often written in G-code) is created or input into the CNC system. This program dictates the grinding wheel’s path, speed, feed rate, and other parameters necessary to achieve the desired geometry and surface finish.

3. Grinding: The CNC machine executes the programmed instructions. The grinding wheel moves along precise paths to remove material from the workpiece, creating the desired shape and finish.

4. Monitoring and Adjustment: The process is monitored for quality control. Adjustments may be made to ensure the workpiece meets specifications and tolerances.

5. Finishing: After grinding, the workpiece may undergo additional processes such as cleaning or further finishing to achieve the final desired quality.

Advantages of CNC Grinding:

• Precision: CNC grinding can achieve extremely tight tolerances and high-quality surface finishes.
• Consistency: Automated control ensures consistent results across multiple parts.
• Complexity: Capable of producing intricate shapes and features that would be difficult or impossible with manual grinding.
• Efficiency: Reduces the need for manual intervention and speeds up production processes.
