CNC grinding is a precise machining process used to achieve high-accuracy surface finishes and dimensional tolerances on various materials. Unlike traditional grinding, which may be performed manually or with simpler machines, CNC (Computer Numerical Control) grinding utilizes advanced computer technology to automate and control the grinding process. This enhances precision, repeatability, and efficiency.

Basic Operation:

1. Grinding Wheel: The primary tool used in CNC grinding is a rotating abrasive wheel. This wheel removes material from the workpiece through a series of abrasive cuts. The type of grinding wheel and its properties (such as grit size and bonding material) are selected based on the material being machined and the desired surface finish.
2. Workpiece Holding: The workpiece is held securely in place by a fixture or chuck, which is often equipped with precision clamping systems. CNC grinding machines can handle various shapes and sizes of workpieces, from small precision parts to large components.
3. Machine Axes: CNC grinding machines typically have multiple axes of movement:
   • X-Axis: Moves the workpiece or grinding wheel horizontally.
   • Y-Axis: Moves the workpiece or grinding wheel vertically.
   • Z-Axis: Moves the grinding wheel towards or away from the workpiece.
   • C-Axis: Rotates the workpiece or grinding wheel around the spindle, often used in cylindrical grinding operations.
   • B-Axis: Allows for tilting or swiveling of the grinding wheel, providing additional angles for complex grinding operations.

Key Components of a CNC Grinding Machine:

• Control Unit: The CNC system that provides precise control over the grinding process. It programs and monitors the movement of the grinding wheel and the workpiece, ensuring accurate and repeatable results.
• Grinding Spindle: Houses the grinding wheel and provides the rotational power needed for the grinding process. The spindle speed can be adjusted according to the requirements of the job.
• Worktable: The platform where the workpiece is mounted. It can move in multiple directions to facilitate different grinding operations.
• Coolant System: Delivers coolant to the grinding area to reduce heat and friction, extend tool life, and improve the surface finish. The coolant also helps flush away grinding debris.
• Feed Mechanism: Controls the rate at which the workpiece or grinding wheel moves relative to each other, affecting the material removal rate and surface finish.

Types of CNC Grinding:

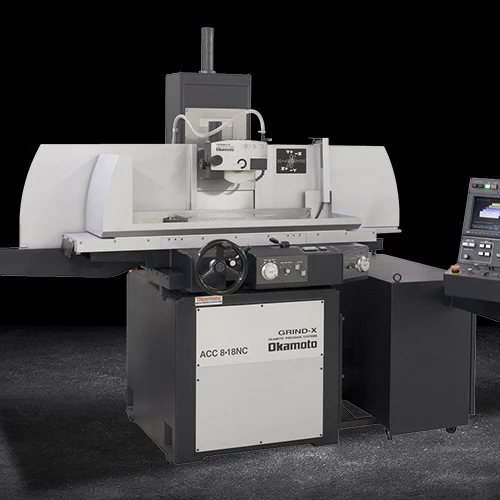

1. Surface Grinding: Focuses on producing a flat surface on a workpiece. The grinding wheel moves perpendicular to the surface of the workpiece.
2. Cylindrical Grinding: Used for grinding the outside diameter of cylindrical parts. The workpiece rotates while the grinding wheel moves along its length.
3. Internal Grinding: Targets the interior surfaces of hollow workpieces, such as tubes or pipes.
4. Tool and Cutter Grinding: Involves sharpening or reshaping cutting tools, such as drills and end mills.
5. Centerless Grinding: The workpiece is supported between two grinding wheels and a regulating wheel, allowing for continuous grinding without clamping.

Advantages of CNC Grinding:

• High Precision: CNC grinding machines offer exceptional accuracy and can achieve tight tolerances and fine surface finishes.
• Consistency: Automated control ensures consistent quality and repeatability across multiple parts.
• Complex Geometries: Capable of grinding complex shapes and features that are challenging to achieve with manual methods.
• Efficiency: Automation reduces manual intervention and speeds up the production process.
